Mobile Hydraulic Control Application 4 – Drill Rig w/Manual Controls

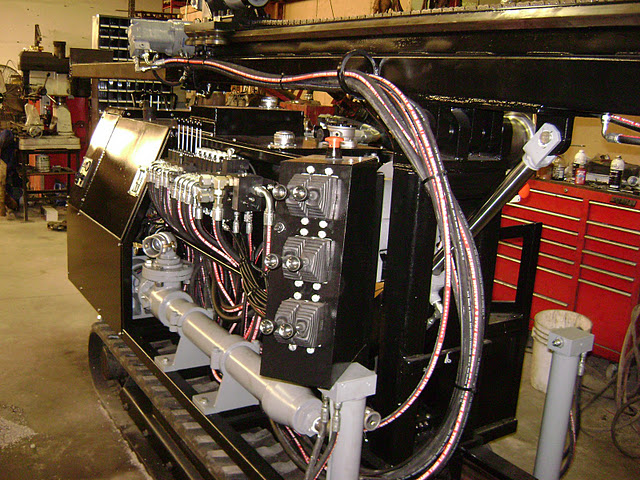

This larger rig has simplified manual controls using direct manual operators and hydraulic pilot control joysticks to perform the required functions.  Compact features allow the Hawe manifold to be located in areas other valve manufacturers products can not.

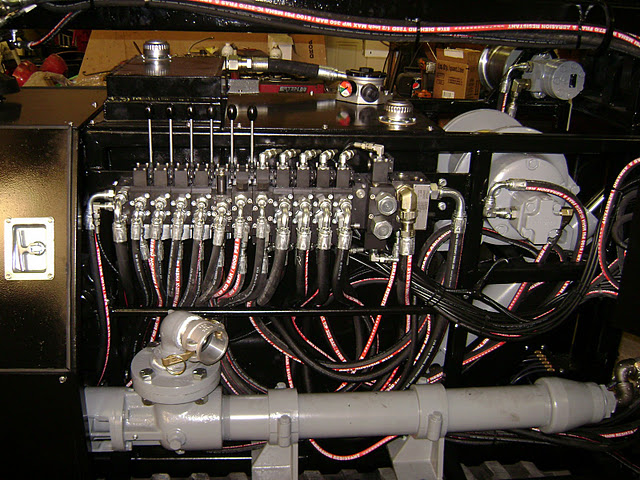

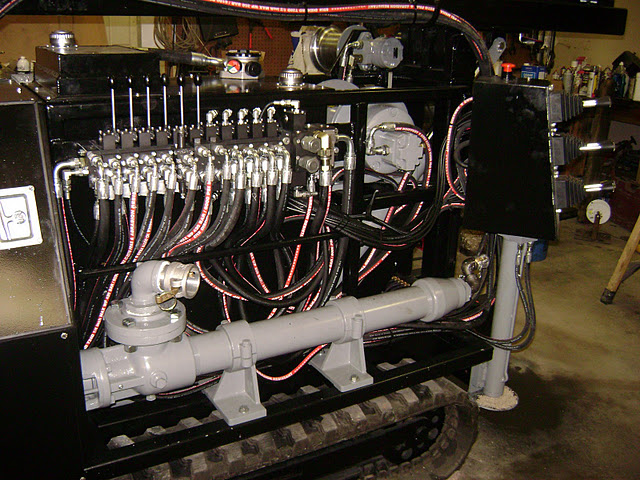

Note the larger valve section combined with the smaller valve sections in the Hawe manifold allowing a single manifold to service individual valve consumer needs with large flow differences.
